FULL LAYOUT WITH 3 X 360 LINE LASER: One 360 degree horizontal plane and two 360 degree vertical planes for level, align and plumb applications. 2 vertical lines cross at 90°angles provide you an instant visibility and comprehensive square layout. Huepar 360 laser level is a complete level tool as well as an alignment laser aids in full room layout.

CONVENIENT TYPE-C CHARGING & DURABLE DESIGN: With TYPE-C charging function, this laser tool can be used at job site with direct input charging even if take out the battery. Super large capacity rechargeable lithium battery can last for 6 hours with all lasers on. The overall TPR soft rubber housing as well as compact design makes the laser tool more durable and portable.

VERSATILE LASER TOOL: The horizontal and two vertical 360° laser lines can be projected separately or together for a variety of level and alignment applications. With our smart pendulum system, this laser level tool self levels and indicates out-of-level condition while pendulum unlocked. The manual mode is activated to lock laser lines for using at any angle once the pendulum locked.

GREEN LASER & OUTDOOR PULSE MODE: This laser tool projects green laser which is up to 4 times brighter than standard red beams, the leveling laser has a working range up to 130Ft with an accuracy of +/- 1/9" at 33Ft. Besides brighter green beam, an outdoor pulse mode extends the laser range up to 200Ft with Huepar Line Laser Receiver in bright-light or outdoor conditions.

KIT CONTENTS & WARRANTY: The kit comes with a hard carry case that brings much more convenience to carry and store of the laser level. Meanwhile, the package also includes a rechargeable lithium battery, TYPE-C power cord, power adapter, a 360° Magnetic Pivoting Base, laser target plate, user manual. One-year warranty can be extended to two years if registered as a royal customer (Guides offered on the package box).

B03CG 3 x 360 Green Laser Level Specifications:

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
Laser Wavelength: 505-520nm
Horizontal/Vertical Accuracy: +/- 1/9 inch at 33Ft
Leveling/Compensation Range: +/-4°
Working Distance (Line): 130Ft (100 LUX), 200Ft with Huepar Receiver LR-5RG/LR-6RG
Operating Time: 6 hours continual use with all laser beams on
Power Source: 5200mAh Li-ion battery
IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)
Mount Size: 1/4"-20

Self-leveling Mode:
When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.
The laser beam will flash when the tool is beyond self-leveling range ± 4°.

Manual / Tilt Mode:
When the pendulum locked, the laser tool can be placed for alignment at any angle.
The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

Power-saving Outdoor Pulse Mode:

Turn ON the pulse mode: After power ON, short press "P" button to switch ON/OFF the pulse mode.
Pulse mode extends the working range up to 200 feet in brighter working conditions when using with Huepar Line Laser Detector
When the pulse mode is activated, the laser beams are dimmer, the pressure on eyes is less when working at close range, and the working time can be appropriately extended
It is compatible with Huepar LR-6RG / LR-5RG Line Laser Receiver (need to purchase separately) only.
Keep the pulse mode on when using with a receiver.

Type-C Charging Port:

This laser level for sale utilizes the included large capacity of 3.7V / 5200mAh lithium battery and provides up to 8 hours of running time.
The lithium battery with the Type-C charging port can be charged separately.
Direct input charging: When taking out the battery, the laser tool can be used at the job site by plugged in.
Four battery indicators on keypad allow users to know the current battery volume.
Charging protection helps prevent from overcharging.

Diverse Power Supply

Large-capacity lithium battery: 6 hours of extra-long working are available.
Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
Charging protection help prevent the tool from overcharge.

Practical and Durable

The kit comes with a hard carry case that brings much more convenience to carry and store of the laser level.

The overall TPR soft rubber housing as well as compact design makes the laser tool more durable and portable.

This laser offers a 1/4"-20 mounting thread for being fixed on mount or tripod.

Strong Magnetic L mount allows for attachment to metal track and steel, supporting users to operate the laser level at 360 degree.

More Installation Methods:

1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.
360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.
1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket for temporary fastening in place or being fixed on tripod or laser mounting pole.
Replaceable Protective Cover: The laser windows can be removed and replaced with a screwdriver.
Green Target Plate: Increases the visibility of the laser beam.

Bright Green Laser Diode:

This cross line laser level for sale adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability.
At the same power, the green laser is twice bright as the red laser, with a working range up to 85 feet (300LUX) of accuracy within ±1/9 Inch at 33 Feet.

Flat Top Cover Design:

Designed with the flat top cover, this laser tool projects 360° laser lines for tiling or ceiling installation at 10mm from the wall and ceiling.
Huepar PV10 + Bracket is recommended for quick setup in wall and ceiling applications.
The laser windows can be removed and replaced with a screwdriver.

Durable Design:

The laser tool is completely covered by TPR soft rubber, which delivers soft touch and stronger protection.
The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool.
IP54 water/dust resistance ensures you work well in hazardous working conditions.

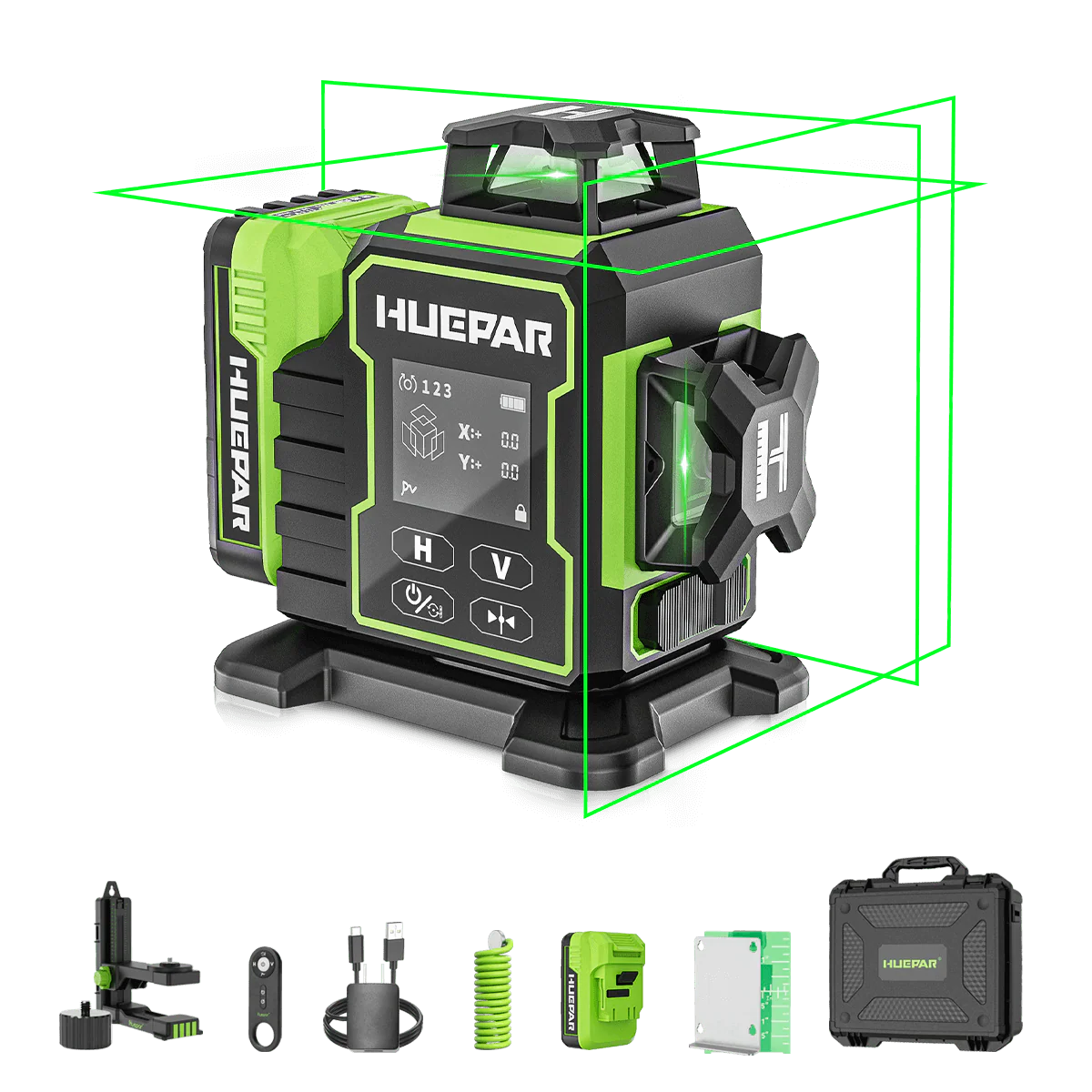

Package Contents:

1 x Huepar B03CG Green Beam Self-Leveling 3D Cross Line Laser Level
1 x 360° Magnetic Pivoting Base
1 x Rechargeable Lithium Battery
1 x Type-C Power Cord
1 x Power Adapter
1 x Laser Target Plate
1 x User Manual
1 x Hard Carry Case

Technical Details

Part Number	001
Item Weight	2.99 Kg
Parcel Dimensions	28.8 x 20.6 x 11.8 cm
Manufacturer reference	001
Color	verde
Power Source	battery-powered
Item Package Quantity	1
Batteries Required?	No

Laser Level

Price

Collections

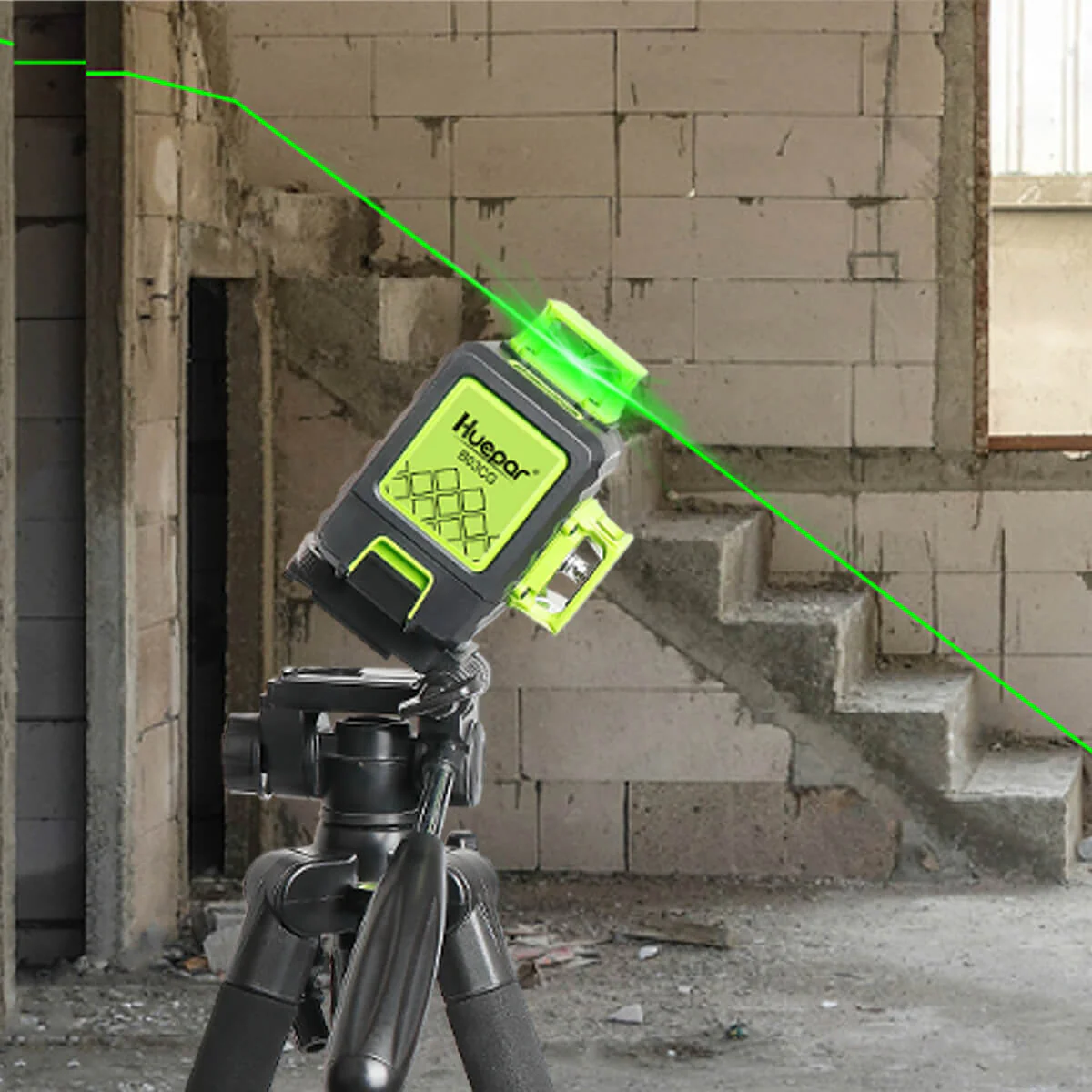

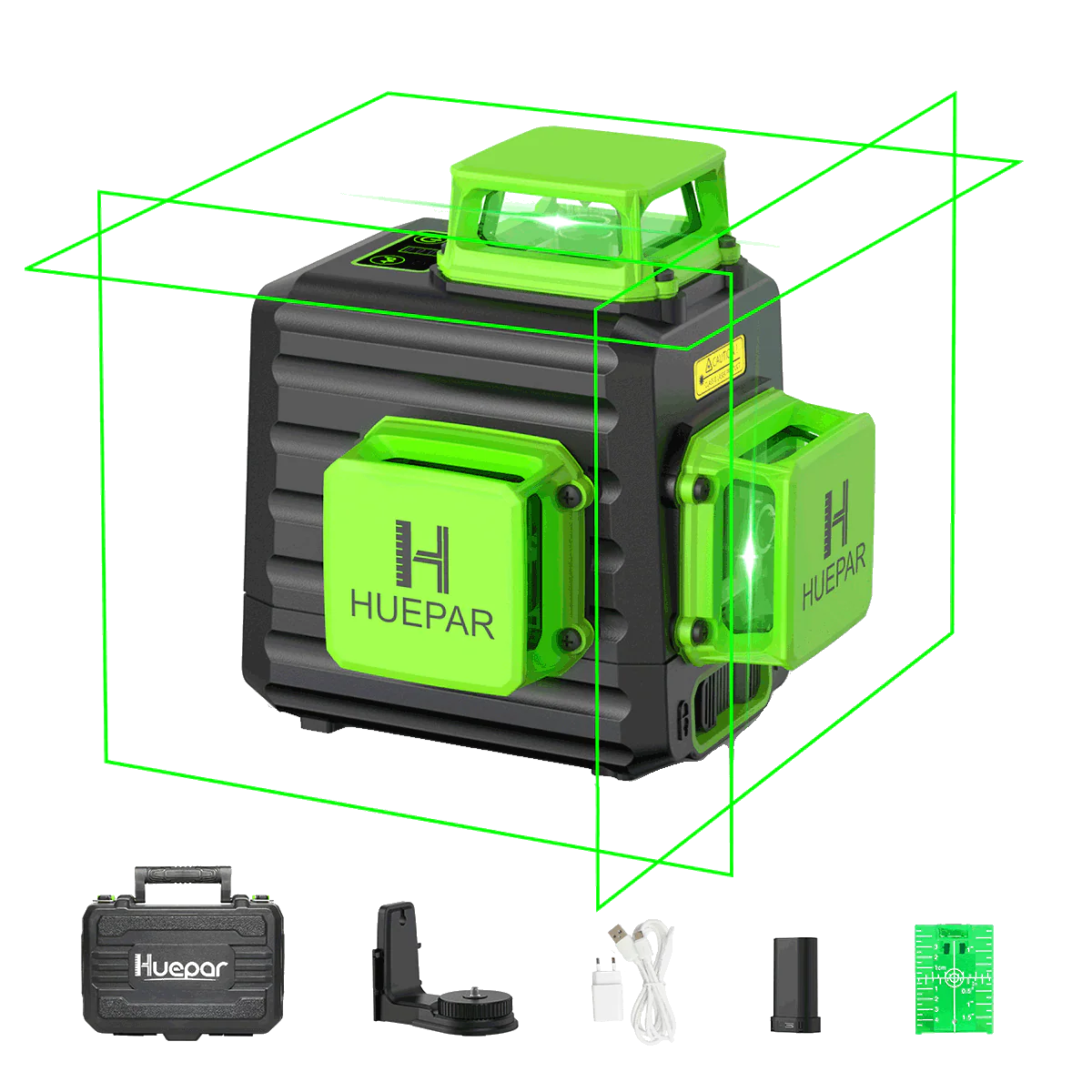

Huepar B03CG Pro Laser Level

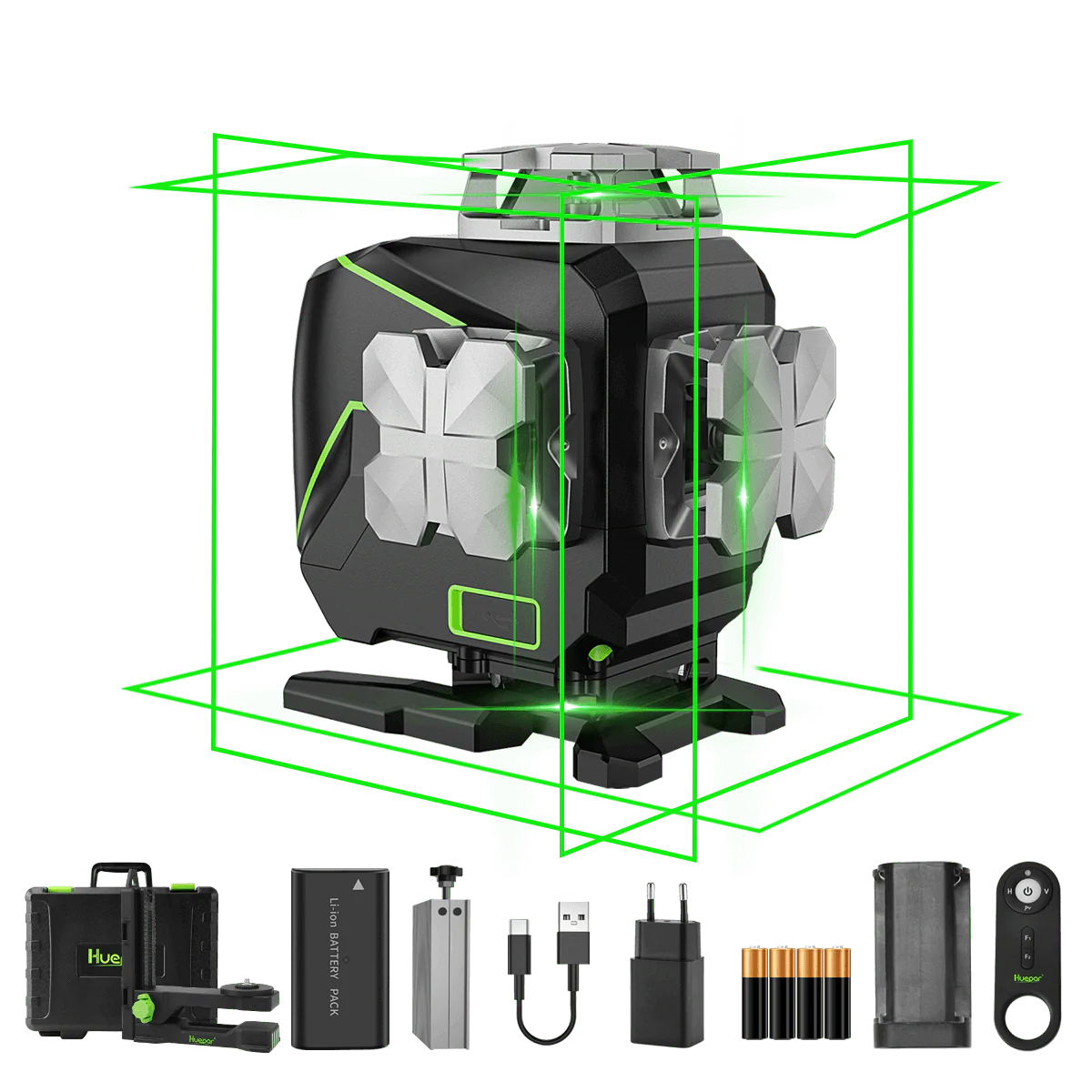

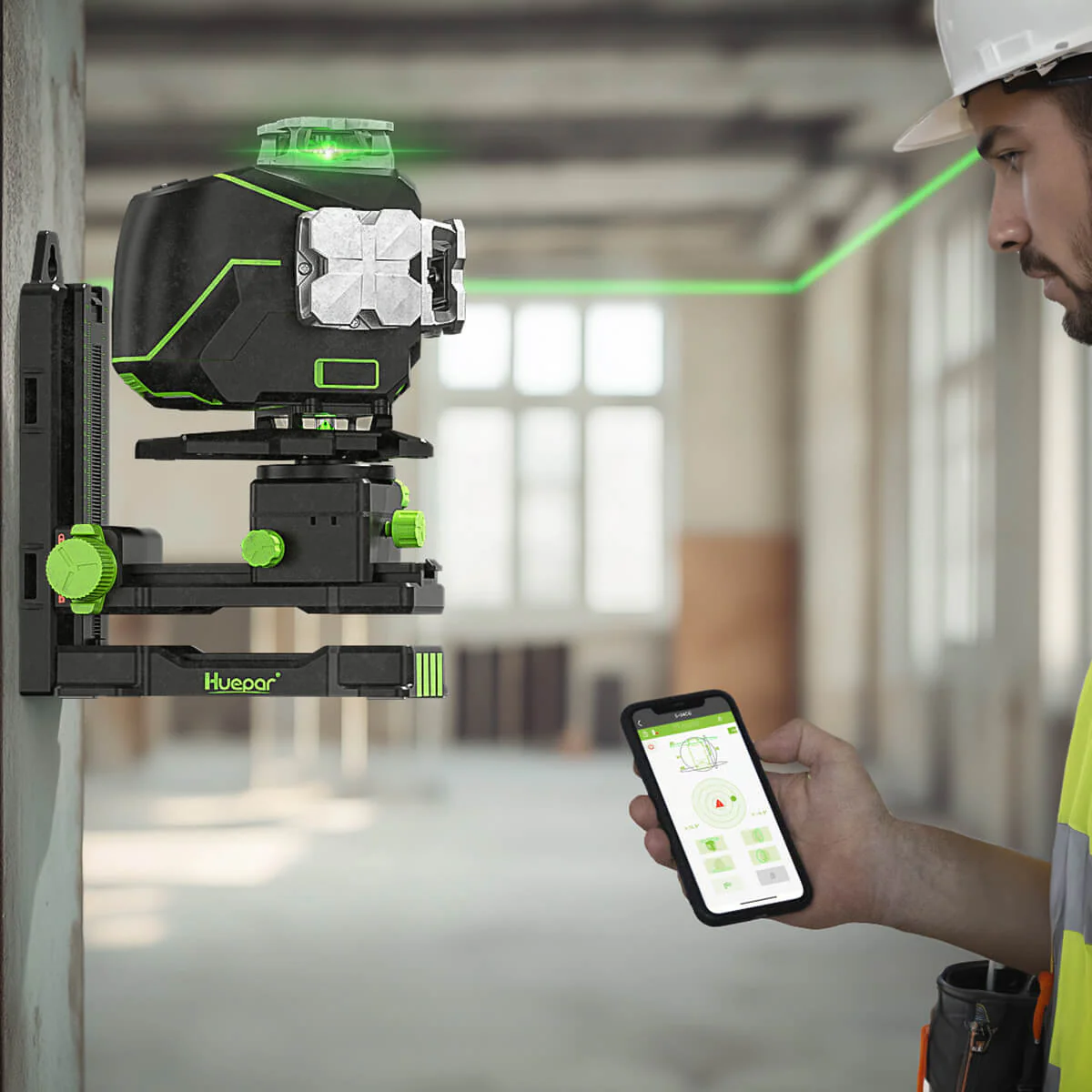

Huepar S04CG Laser Level

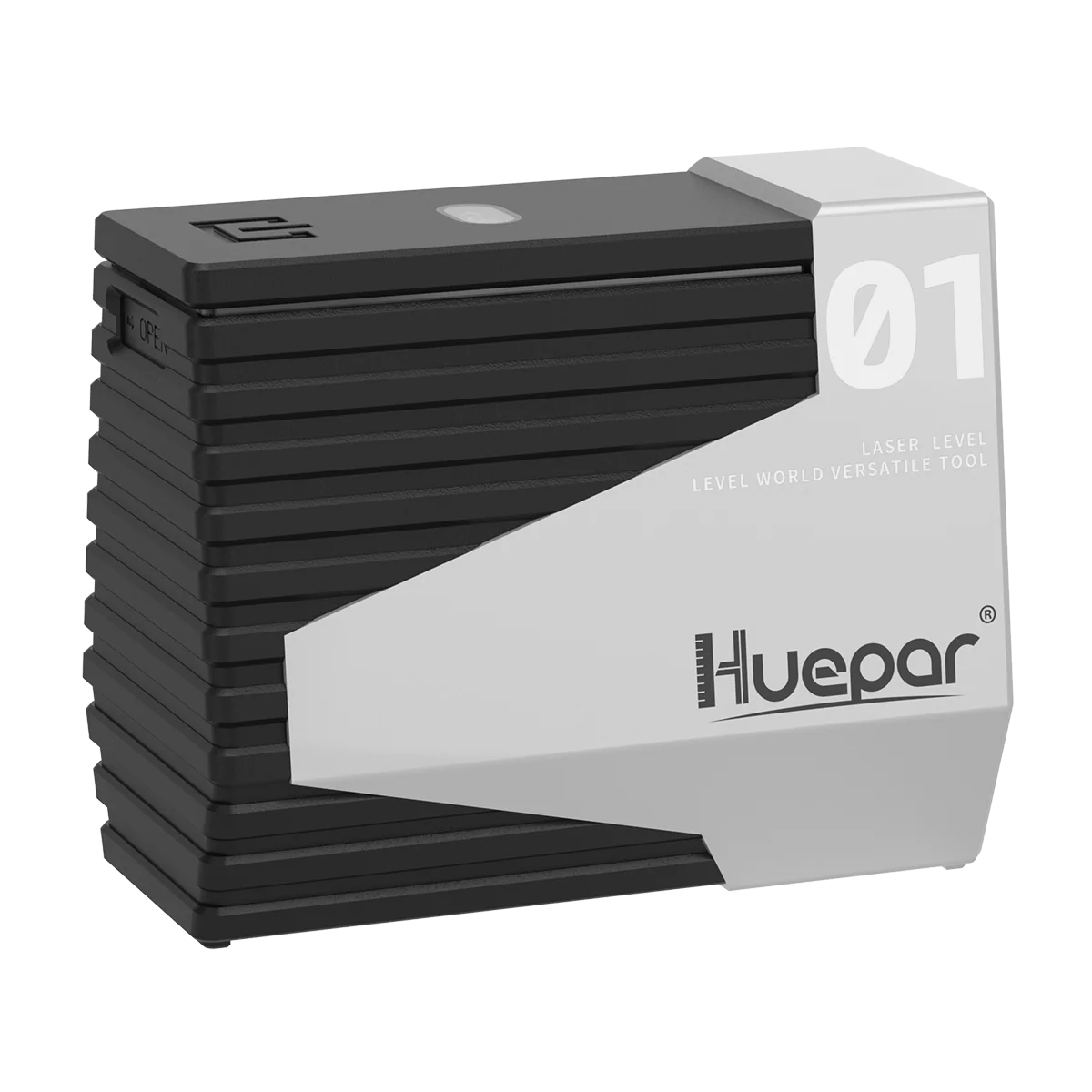

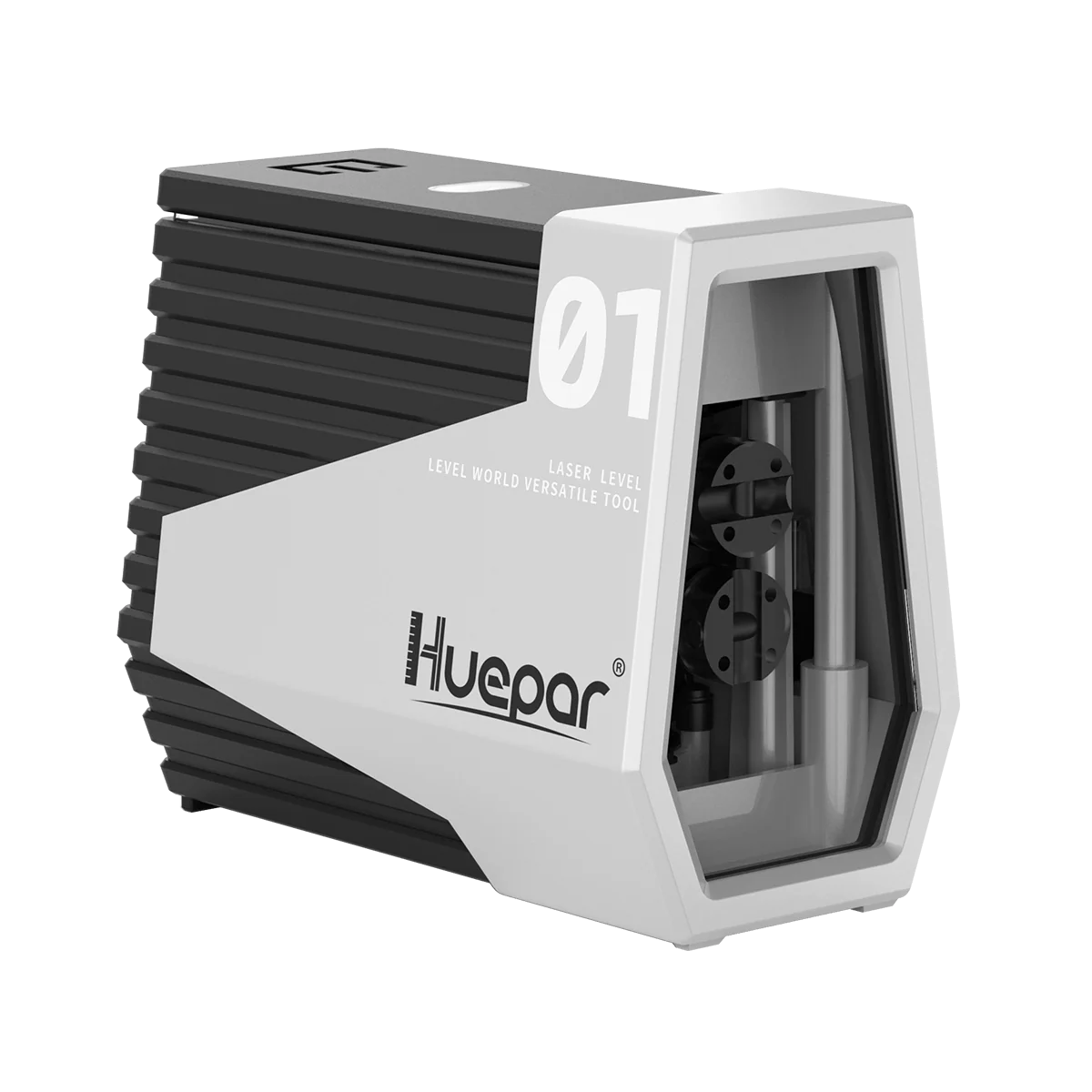

Huepar E011R Laser Level

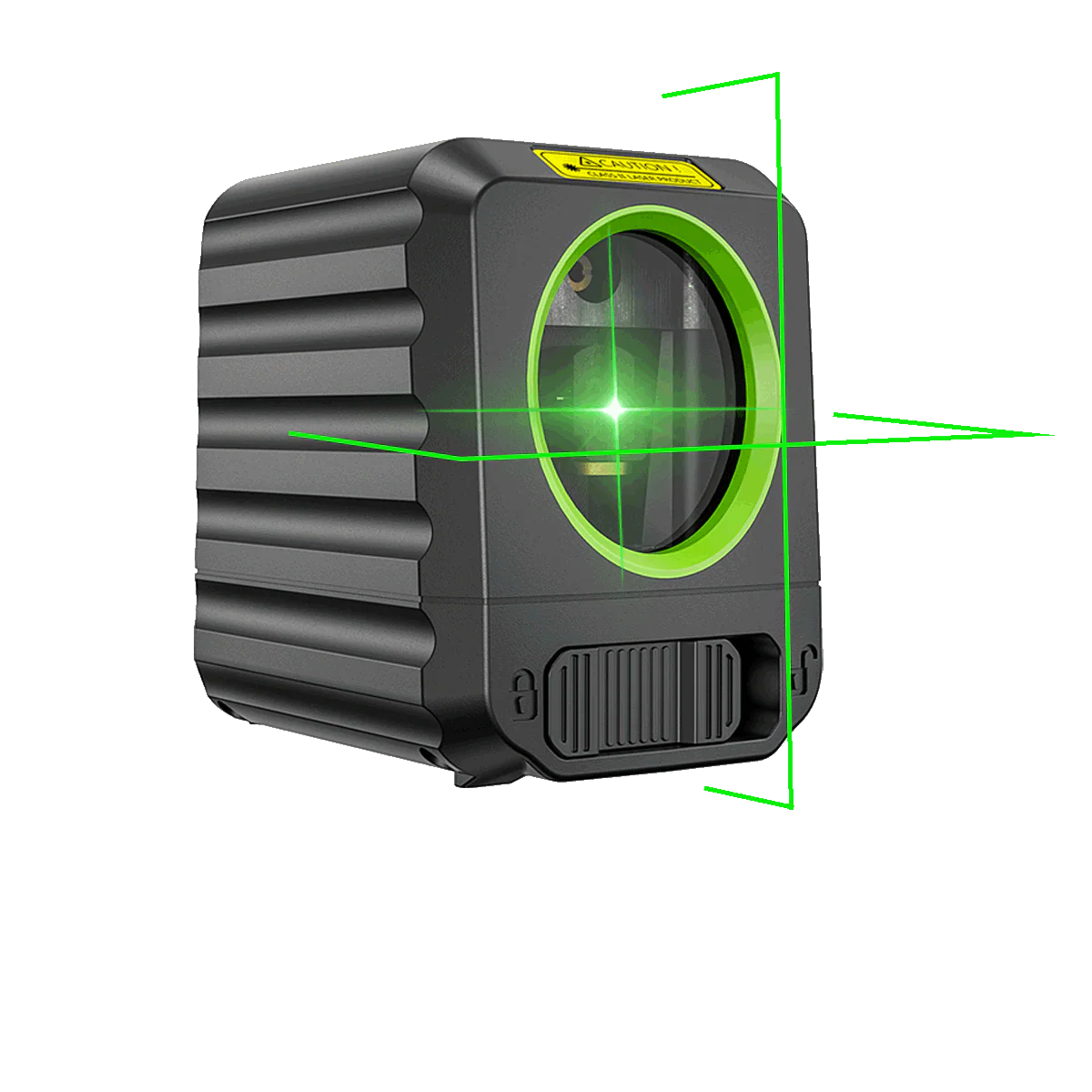

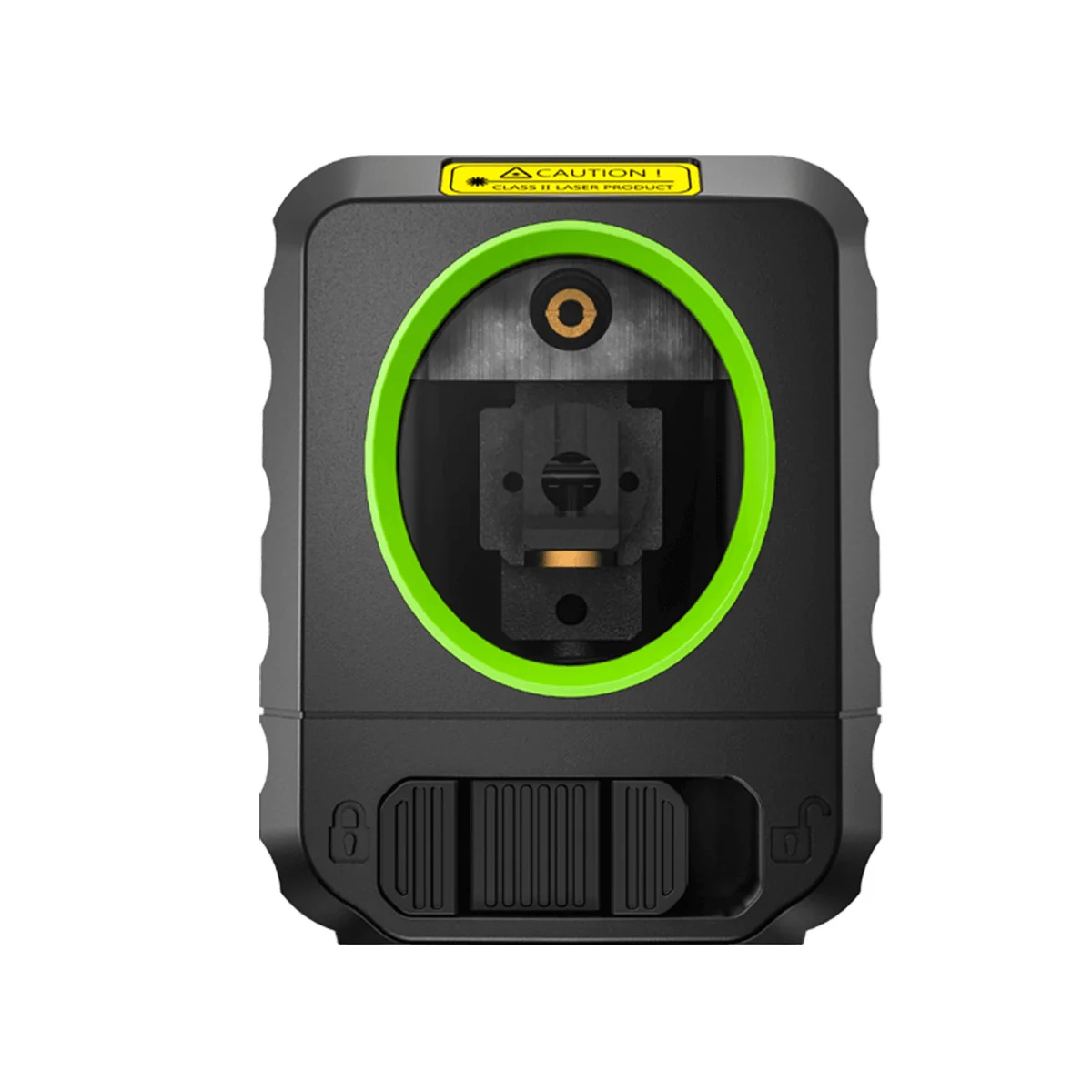

Huepar B011G Laser Level

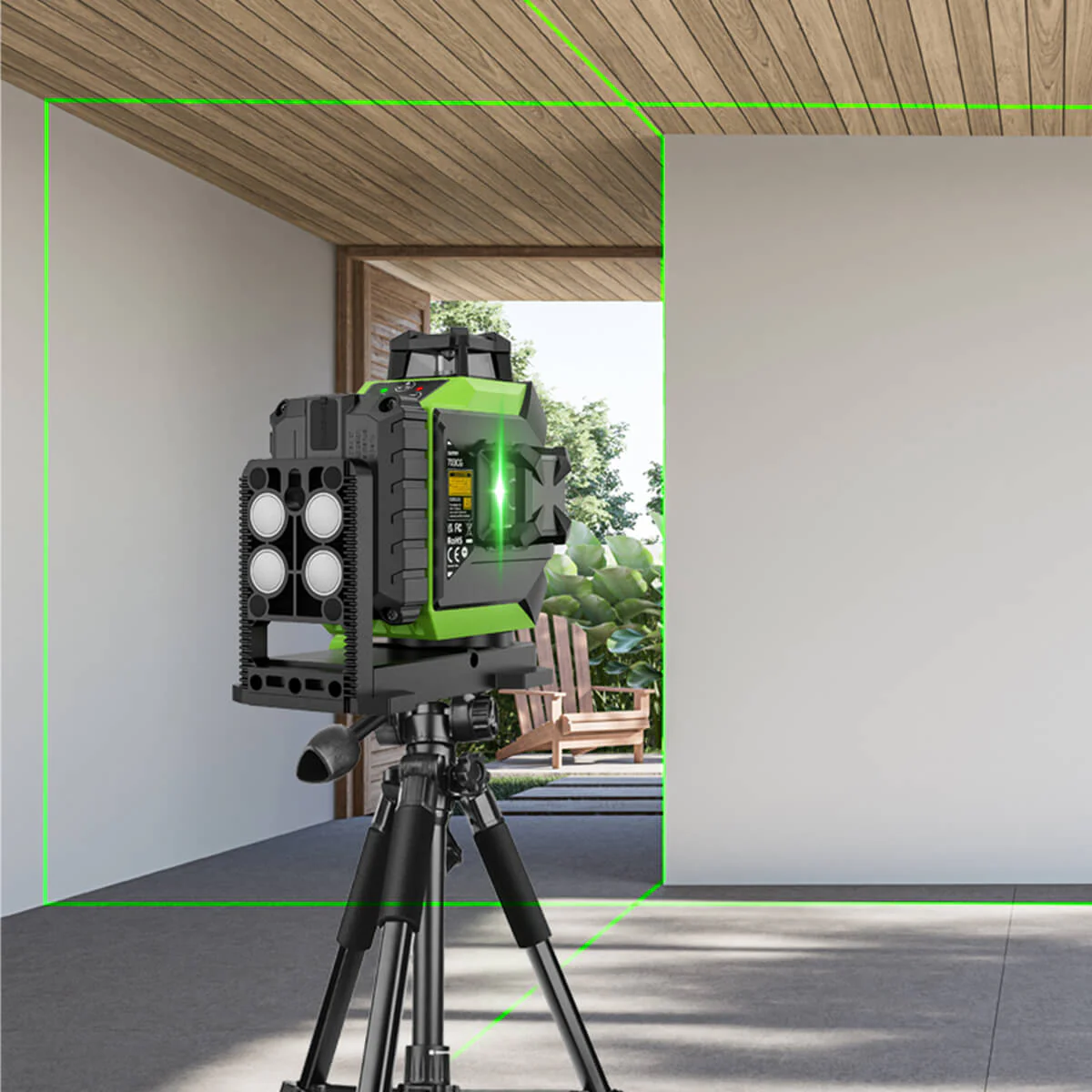

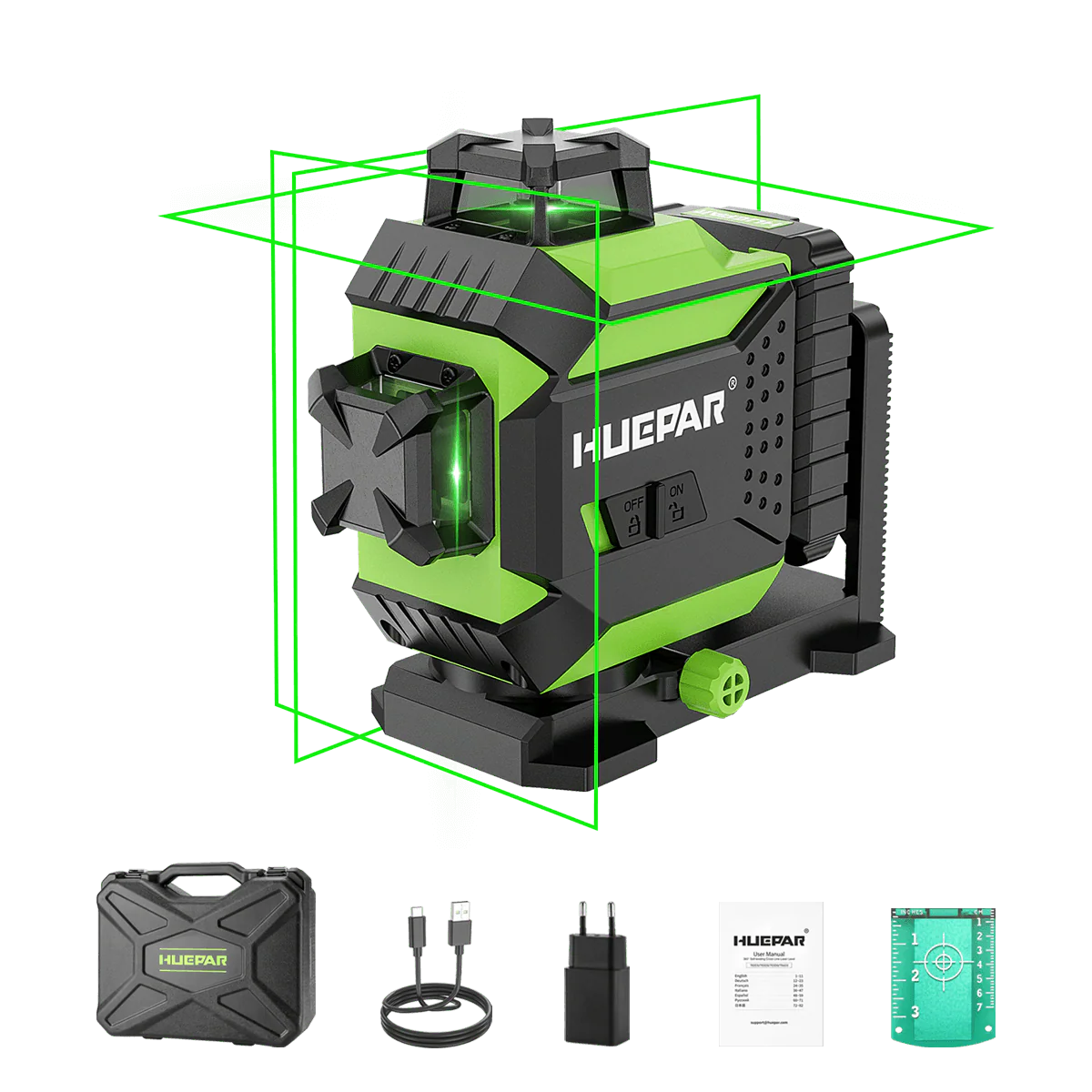

Huepar 703CG Laser Level

Huepar W03CG Laser Level

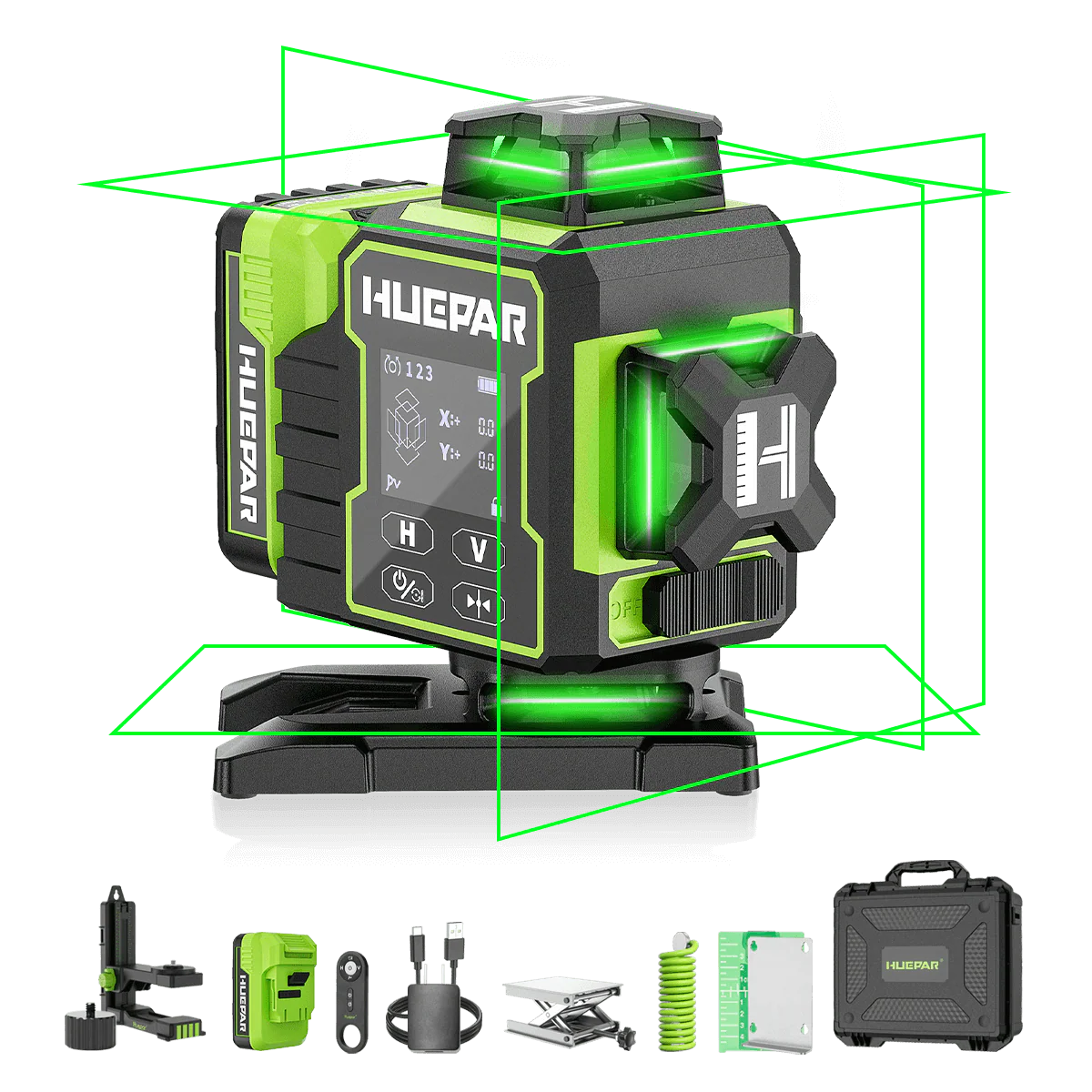

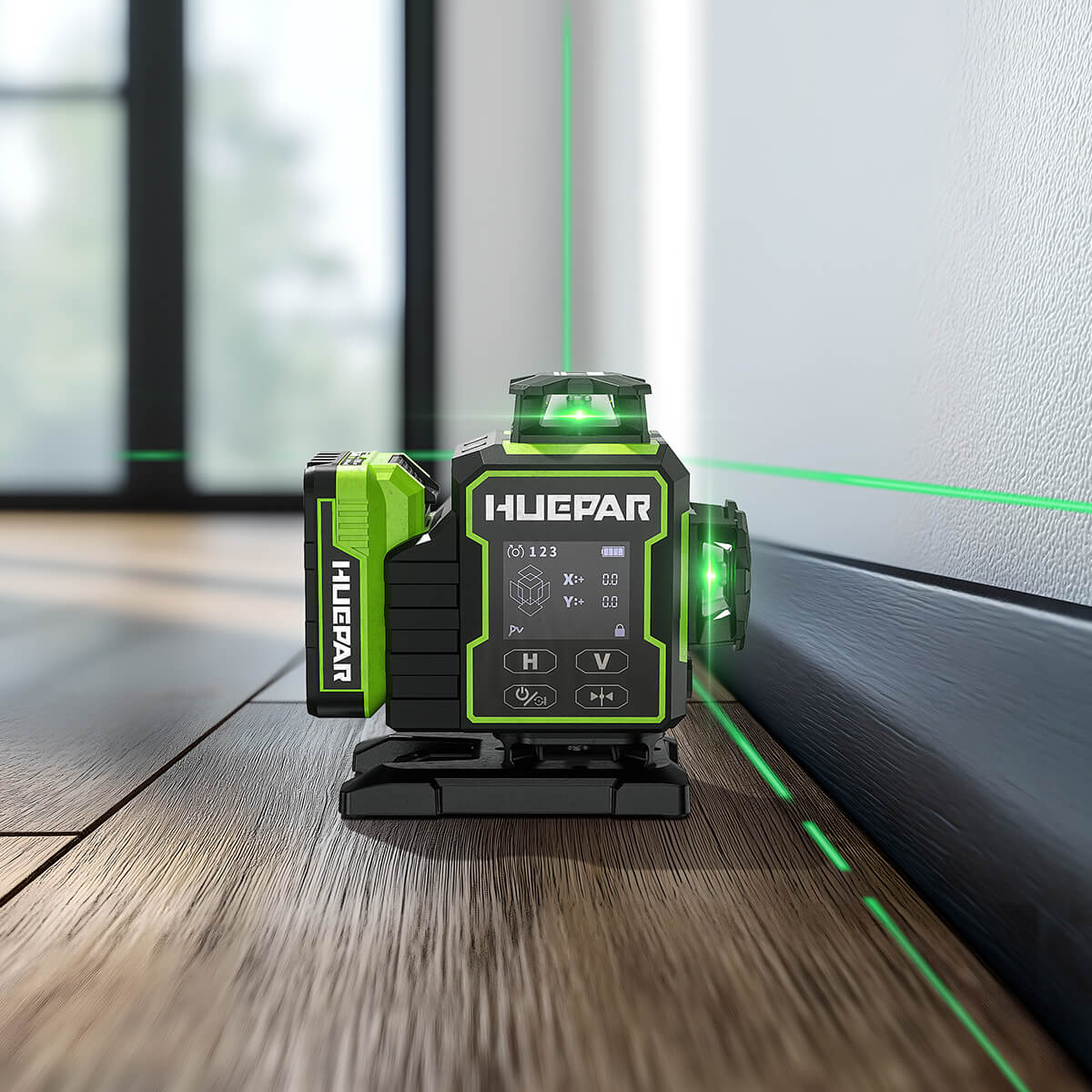

Huepar W04CG Laser Level

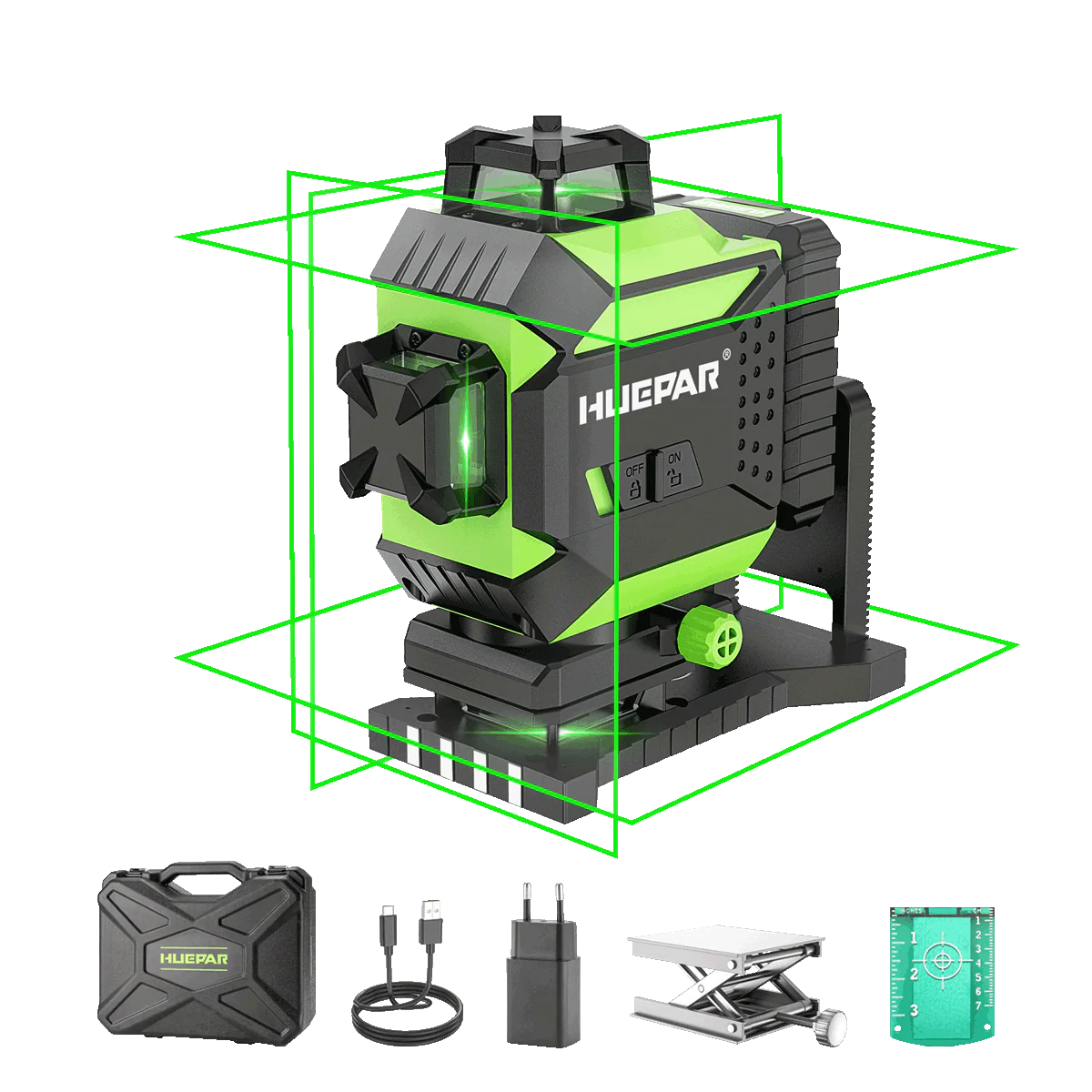

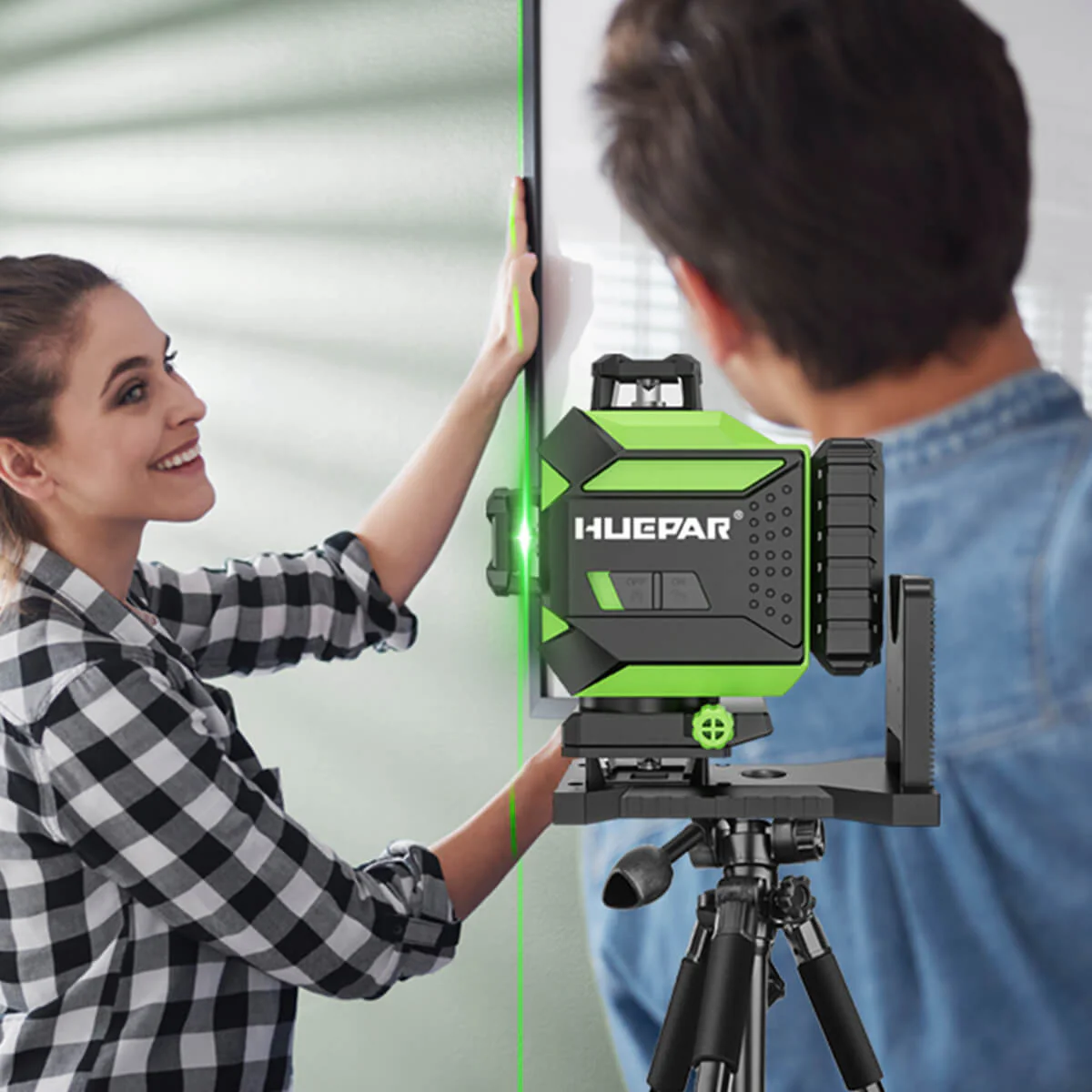

Huepar 704CG Laser Level

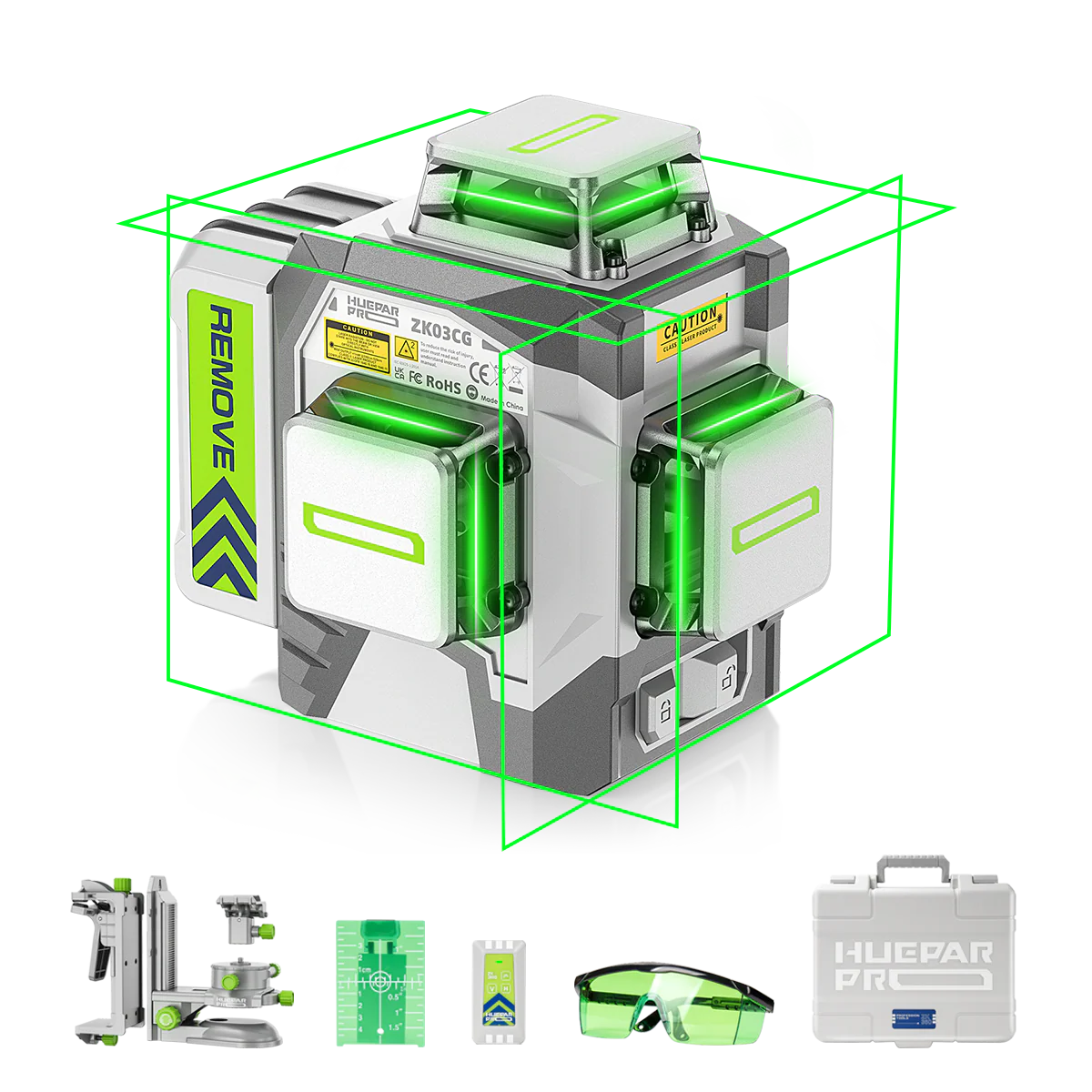

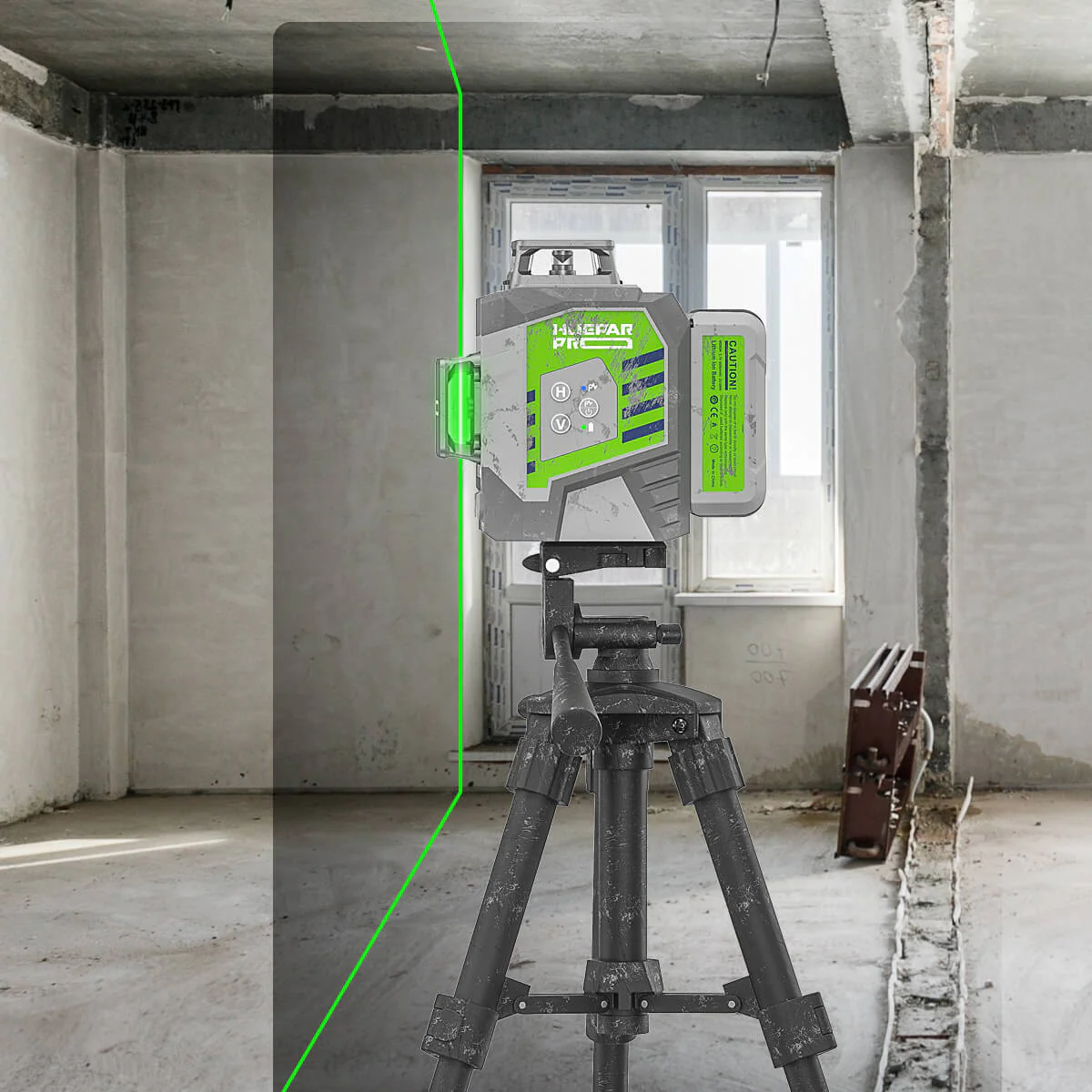

Huepar Pro ZK03CG Laser Level
